Automatic build triggering

In order to fully automate your CI/CD pipeline, you can set up automatic build triggering by configuring which branches to track and when to trigger builds.

Build triggers can be configured in App settings > Build triggers.

Tracking specific branches

The branches tracked for building are selected by entering branch patterns and including or excluding the matching branches. Note that you can either enter the exact name of the branch to select it or use the wildcard symbols listed in the table below to select more than one branch with one pattern.

The first (i.e. topmost) pattern in the list is applied first. Each following pattern will limit the set of branches further. In the case of conflicting patterns, the latter one will prevail. You can check the targeted branches by clicking the eye icon next to Watched branch patterns.

To add a new branch pattern:

  1. Navigate to App settings > Build triggers.
  2. Enter a pattern matching the name of one or more branches in the project.
  3. Select Include or Exclude from the dropdown to limit the set of targeted branches by either including or excluding the matching branches.
  4. For pull request builds, select whether the tracked branch is the Source or the Target branch of the pull request. This setting has no effect on other types of builds.
  5. Click Add pattern to save it. You can always edit or delete added patterns.
  6. Click Save at the end of the section for the changes to take effect.

Build triggers

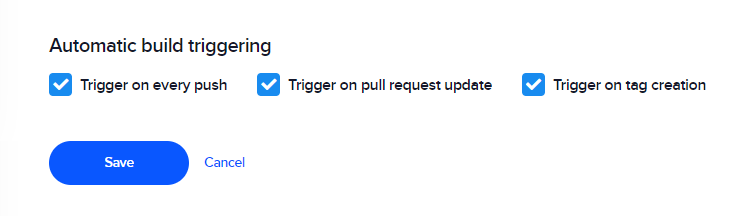

Under Automatic build triggering, you can select when to trigger builds.

Trigger on push. When checked, a build will be started every time you commit code to any of the tracked branches.

Trigger on pull request update (not supported for apps from custom sources). When checked, your workflow is run when a pull request is opened or updated to verify the resulting merge commit.

  • For triggering pull requests, you can specify whether each branch pattern matches the source or the target branch of the pull request.

  • If you want to only run tests for pull requests and skip building for platforms, select Run tests only under Build > Build for platforms.

Trigger on tag creation. When checked, Codemagic will automatically build the tagged commit whenever you create a tag for this app. Note that the watched branch settings have no effect on tag builds.

Cancel outdated webhook builds. When checked, Codemagic will automatically cancel all ongoing and queued builds triggered by webhooks on push or pull request commit when a more recent build has been triggered for the same branch. We recommend enabling this feature when you're making several commits, each of which triggers a build.

If you don't enable any automatic build triggers, you can only start builds manually for this workflow.

Webhooks

Codemagic automatically adds webhooks to GitHub, GitLab, and Bitbucket after you have enabled any of the triggers in App settings > Automatic build triggering.

Set up webhooks manually

If Codemagic is unable to add a webhook automatically or when you are building an app that is added from a custom source, then you must set up the webhook in your repository hosting service to enable automatic builds in response to events in the repository. Webhooks must be also set up manually for codemagic.yaml builds.

  • GitHub: Open your project and navigate to Settings > Webhooks > Add webhook, paste the payload URL from below, make sure Content type is application/json and select the following events: Branch or tag creation, Pull requests, Pushes.

  • GitLab: Navigate to Settings > Webhooks, paste the payload URL and check the following boxes in the Trigger section: Push events, Tag push events, Merge request events. Also, be sure to enable SSL verification.

  • Bitbucket: Open your application repository, go to Settings > Webhooks (in Workflow section) > Add webhook, then enter an arbitrary title for the webhook and paste the payload URL in the URL field. For Triggers, select Choose from a full list of triggers and select the following events: Push in the Repository section and Created, Updated, Merged in the Pull Request section.

The payload URL has the following format: https://api.codemagic.io/hooks/[appId].

You can find your app ID in the browser URL after app/ when you open the app on Codemagic: https://codemagic.io/app/[appId]

Custom build triggers

Build triggering in response to custom events can be set up by sending a POST request to the https://api.codemagic.io/builds endpoint.

POST https://api.codemagic.io/builds

Content:

    {
    "appId": "----appId----",
    "workflowId": "-----workflowId-----,
    "branch": "masters"
    }

Header:

"x-auth-token": "----token----"

x-auth-token is available via User settings > Integrations > Codemagic API > Show.

You can find the workflowId and appId from your App settings > Workflow settings > Build status badge > Badge markdown.

Badge markdown has the following format: (api.codemagic.io/apps/[appId]/[workflowId]/status_badge.svg)

For use with YAML configuration, workflowId is the workflow ID in your codemagic.yaml configuration file shown below:

workflows:
  my-workflow:                # workflow ID
    name: My workflow name    # workflow name displayed in UI

Skipping builds

If you do not wish Codemagic to build a particular commit, include [skip ci] or [ci skip] in your commit message.
